New
99.00JOD
- Intel H810 chipset and LGA1851 socket for Intel Core Ultra processors (Series 2).
- Two DDR5 DIMM slots supporting up to 128 GB and 6400/5600 MT/s memory.
- PCIe 4.0 x16 expansion slot, one PCIe 4.0 M.2 connector and four SATA ports.
- Micro ATX design with GbE LAN, HDMI, DisplayPort and D-Sub outputs.
RAM:
In Stock
Available and ready to ship
Delivery
Covers all areas of the Kingdom
Order within 48m
Normal shipping
Get it tomorrow
Sunday18/10/2026
Only 3.00 JD
Fast shipping
Get it today
Only 5.00 JD
Do you have inquiries about this product?
WhatsApp UsDescription

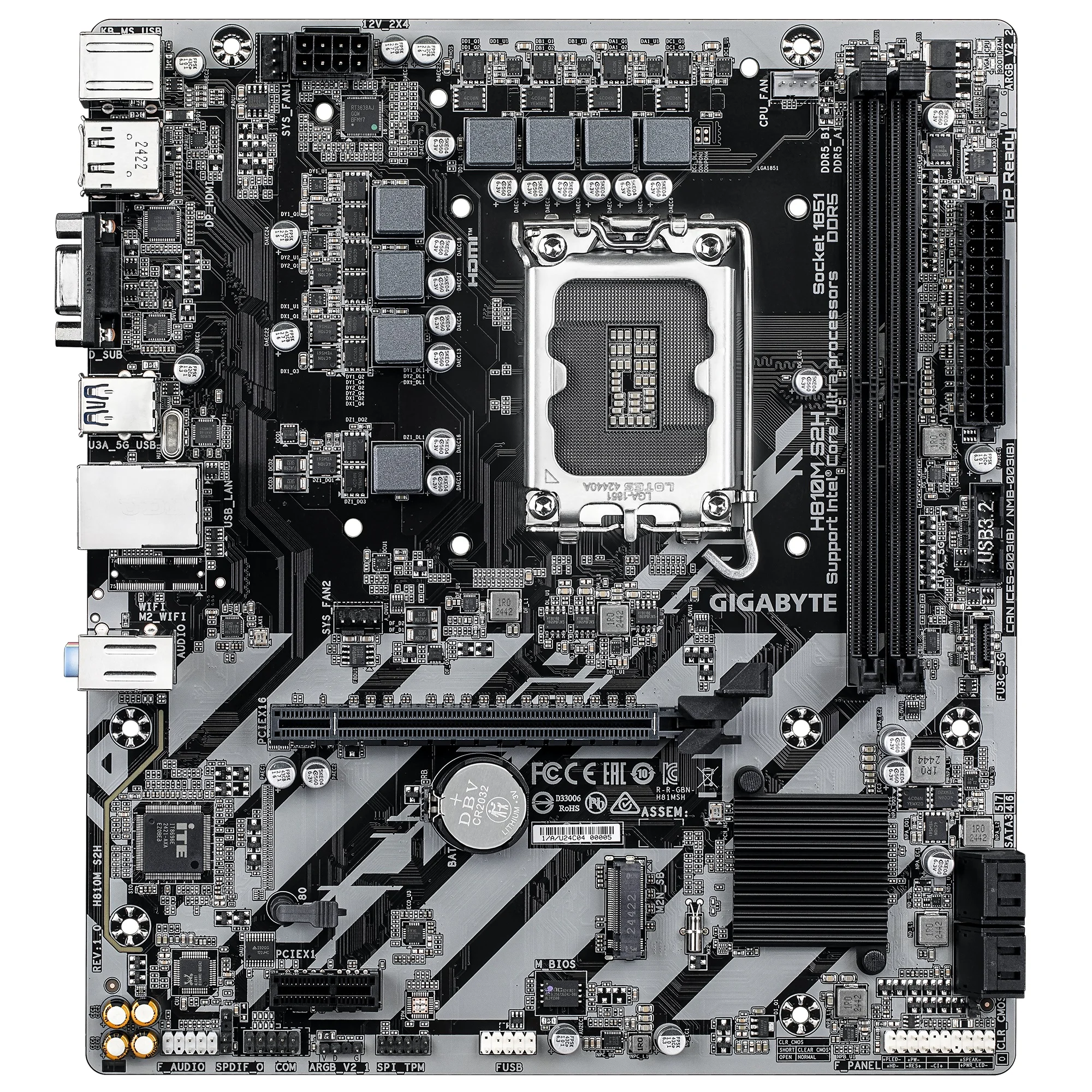

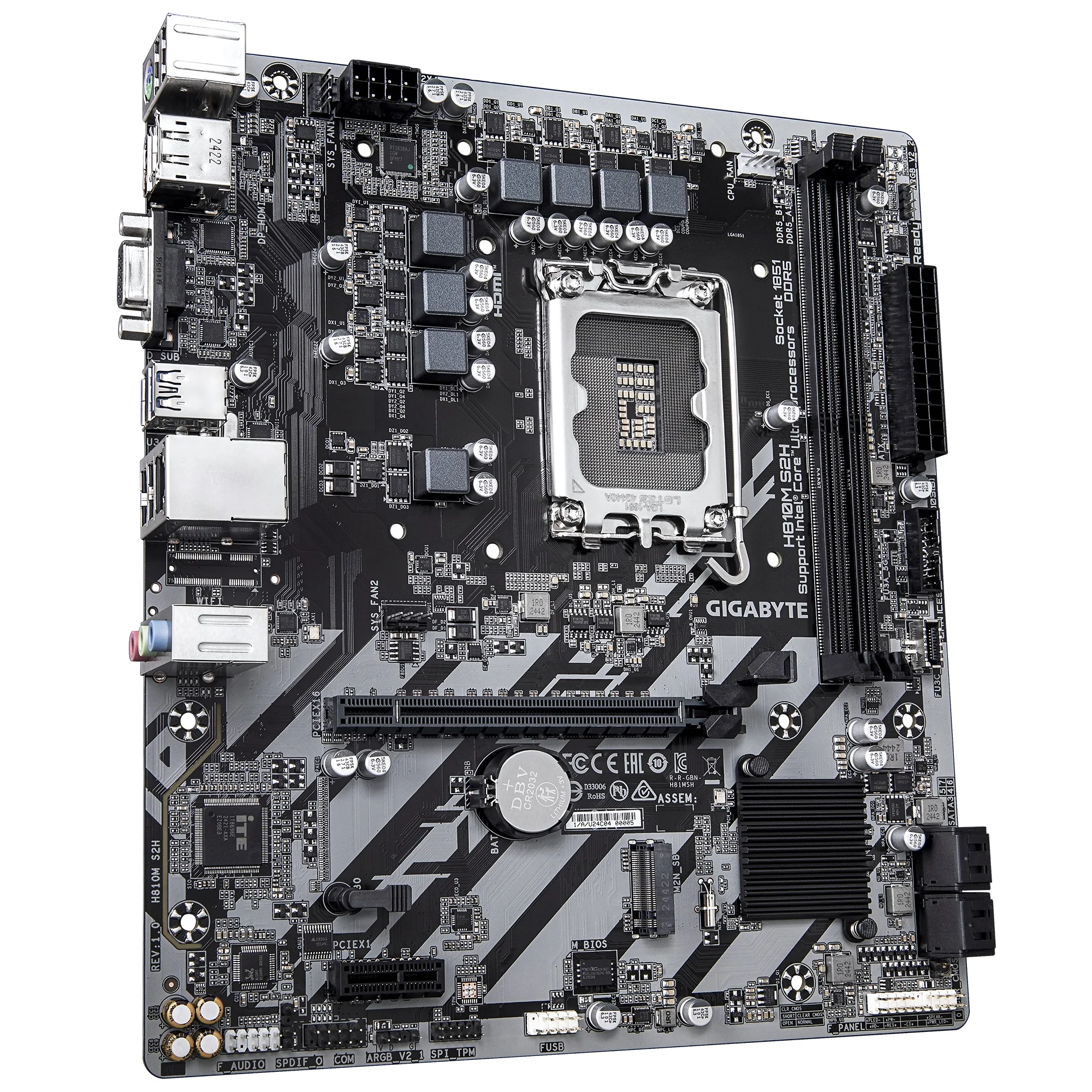

- Intel Core Ultra compatibility: The GIGABYTE H810M S2H motherboard features the Intel H810 Express chipset and an LGA1851 socket supporting Intel Core Ultra processors (Series 2). Check the manufacturer's CPU support list for compatibility.
- DDR5 memory support: Two DIMM slots support up to 128 GB of system memory, with up to 64 GB per DIMM, dual-channel architecture and 6400/5600 MT/s modules. Supports XMP profiles and compatible unbuffered ECC modules operating in non-ECC mode, as well as non-ECC modules. Supported speeds depend on the CPU and memory configuration.
- Power delivery: Hybrid 4+1+2-phase VRM solution with 24-pin ATX and 8-pin ATX 12V power connectors.
- Expansion and easy installation: One PCIe 4.0 x16 slot with EZ-Latch quick release and one PCIe 3.0 x1 slot. The x16 slot supports a graphics card or an NVMe SSD.
- Storage connectivity: One M.2 Socket 3, M-key connector supports 2280 PCIe 4.0 x4/x2 SSDs. Four SATA 6Gb/s connectors support SATA RAID 0, 1, 5 and 10.
- Wired networking: Realtek GbE LAN supports 1 Gbps, 100 Mbps and 10 Mbps connections through the rear RJ-45 port.
- Multiple display outputs: HDMI supports up to 4096 × 2160 at 60 Hz, DisplayPort up to 3840 × 2160 at 60 Hz, and D-Sub up to 1920 × 1200 at 60 Hz. Supports HDMI 2.1, HDCP 2.3, DisplayPort 2.1 and up to three simultaneous displays, depending on the installed CPU.

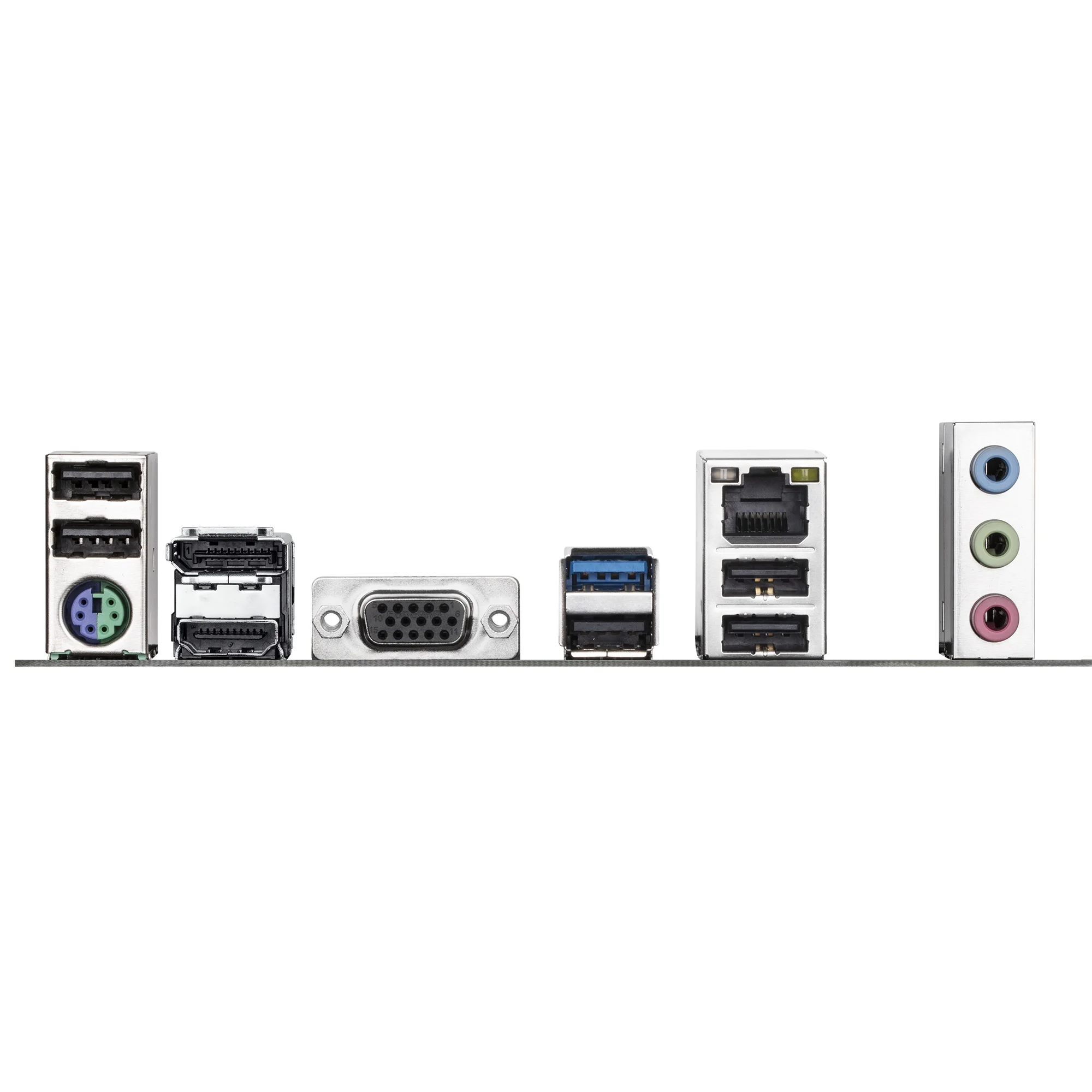

- USB connections: Rear connectivity includes one USB 3.2 Gen 1 port and five USB 2.0/1.1 ports. Internal headers provide USB Type-C with USB 3.2 Gen 1 support, two additional USB 3.2 Gen 1 ports and two USB 2.0/1.1 ports.
- High-definition audio: Realtek Audio CODEC supports 2/4/5.1/7.1-channel audio, three rear audio jacks and an internal S/PDIF Out header. Audio software configuration is required for 7.1-channel output.
- Cooling and lighting connections: Includes one CPU fan header, two system fan headers and two addressable RGB Gen2 LED strip headers. Monitoring includes voltage, temperature, fan speed and water-cooling flow rate, with fan-failure warning and compatible fan-speed control.
- BIOS and internal connectivity: Licensed AMI UEFI BIOS with multi-theme interface and Q-Flash Auto Scan. Includes front-panel and front-audio headers, a compatible TPM module header, serial header, Clear CMOS jumper and a rear PS/2 keyboard/mouse port.
- Compact Micro ATX size: Measures 24.4 × 21.5 cm for compatible Micro ATX PC builds.
Specifications
RAM128
CPU SocketLGA 1851
ChipsetH810
Form FactorMicro ATX
Memory Type (Generation)DDR5
Max Memory Speed (OC)5600, 6400
M.2 Slots (NVMe)1x
PCIe Version PCIe 4.0, PCIe 3.0
RGB LightingAddressable RGB Gen2 LED strip headers
Overclocking SupportSupport for Extreme Memory Profile (XMP) memory modules
ProcessorIntel Core Ultra Processors (Series 2)
Length24.4 cm
Width21.5 cm
