New
164.00JOD
- LGA 1700 socket supports 12th, 13th and 14th Gen Intel processors.
- Four DDR5 DIMM slots support up to 256 GB and 7600 MT/s overclocked memory.
- PCIe 5.0 x16 expansion and three PCIe 4.0 M.2 storage slots.
- 2.5GbE LAN; wireless specifications conflict between the supplied source entries.
RAM:
In Stock
Available and ready to ship
Delivery
Covers all areas of the Kingdom
Order within 48m
Normal shipping
Get it tomorrow
Sunday18/10/2026
Only 3.00 JD
Fast shipping
Get it today
Only 5.00 JD
Do you have inquiries about this product?
WhatsApp UsDescription

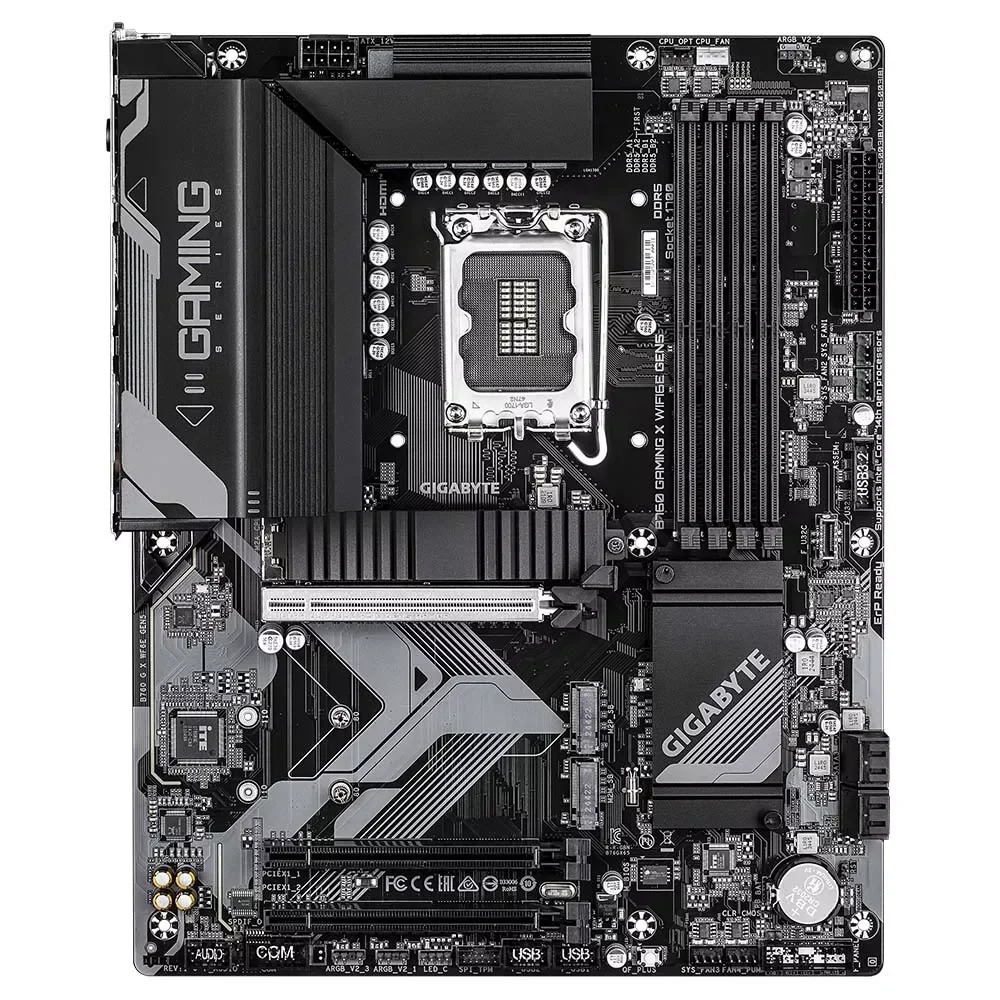

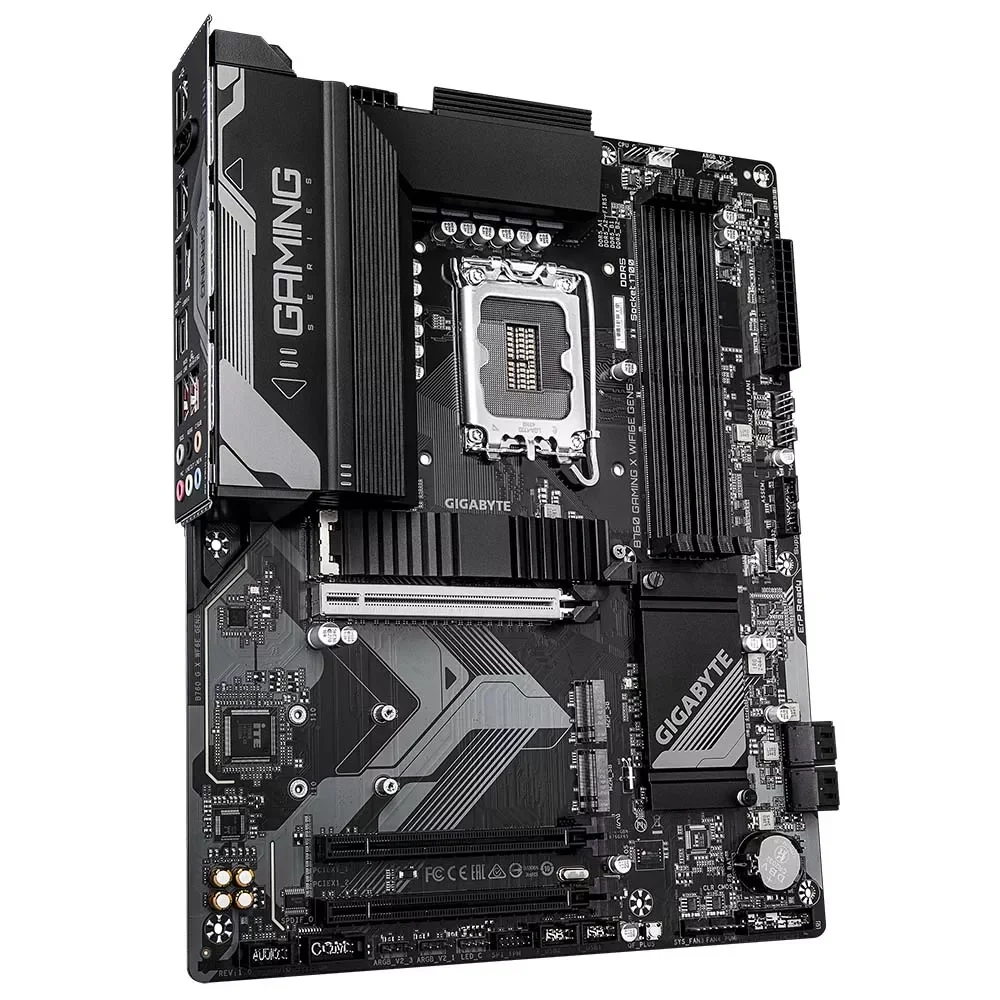

- Intel platform compatibility: The GIGABYTE B760M GAMING X WF6E GEN5 motherboard is listed with the Intel B760 chipset and LGA 1700 socket. Supported processor families include 14th Gen Intel Core, 13th Gen Intel Core, 12th Gen Intel Core, Intel Pentium Gold and Intel Celeron.
- DDR5 memory support: Four DIMM sockets support dual-channel memory with a maximum capacity of 256 GB, up to 64 GB per DIMM. Memory speeds reach 7600 MT/s with overclocking, with Intel XMP support. Supported speeds and configurations depend on the processor and memory modules.
- Expansion: One CPU-connected PCIe 5.0 x16 slot supports a graphics card or NVMe SSD. Two additional physical x16 slots operate at PCIe 3.0 x1.
- Storage connections: Three M.2 sockets support PCIe 4.0 x4/x2 drives in 2280 and 22110 formats. Four SATA 6Gb/s connectors support SATA RAID 0, 1, 5 and 10.
- Networking: Realtek 2.5GbE LAN supports 2.5 Gbps, 1 Gbps and 100 Mbps connections. The detailed description lists Intel Wi-Fi 6E AX210, Wi-Fi a/b/g/n/ac/ax, 2.4/5/6 GHz bands and Bluetooth 5.3, while the structured specifications state no Wi-Fi or Bluetooth. Confirm wireless availability before purchase.

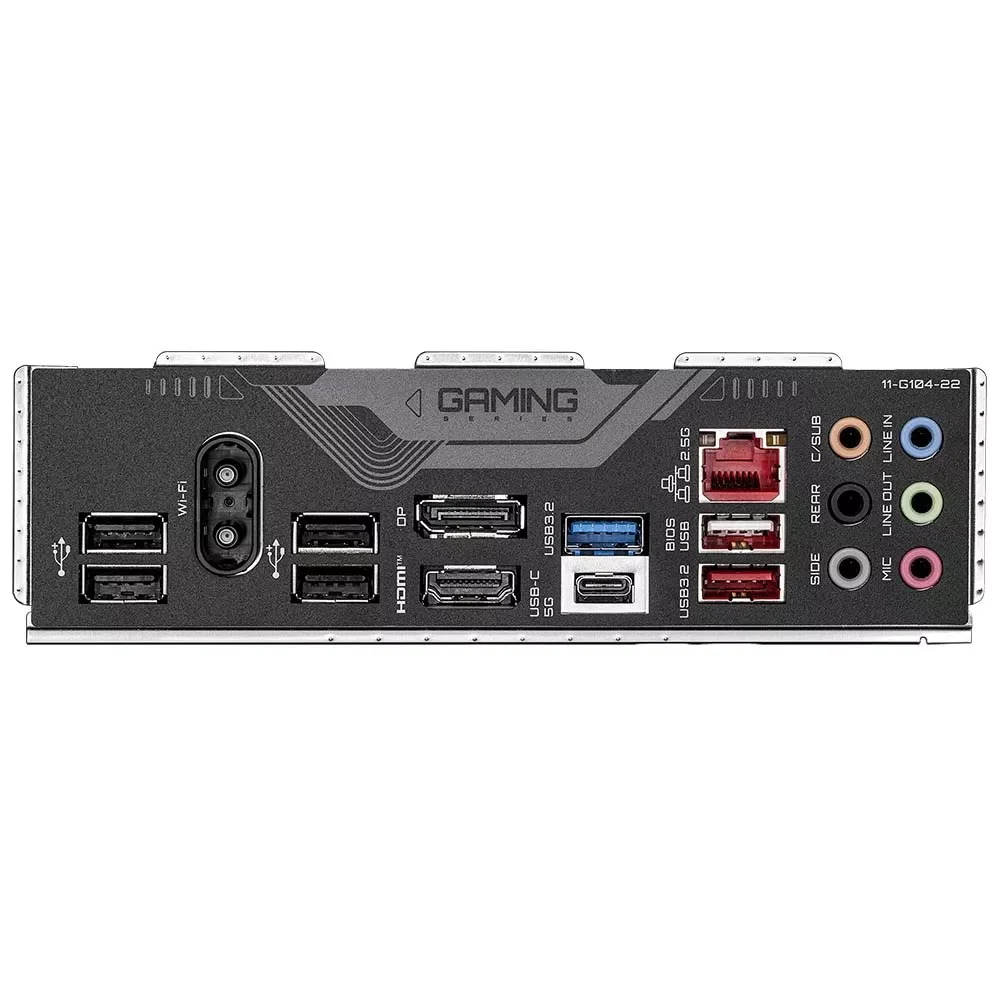

- Display and audio: DisplayPort 1.2 and HDMI 2.1 outputs support compatible processors with integrated graphics. Realtek high-definition audio supports configurable multichannel output and S/PDIF Out.
- USB connectivity: Includes rear USB Type-C, USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1 and USB 2.0 ports, plus internal USB headers and a USB 3.2 Gen 2 Type-C header.
- Cooling and customization: MOSFET heatsinks help manage heat, while fan and water-pump headers support system cooling. Three ARGB Gen2 headers and one RGB header support compatible lighting accessories.
- Maintenance tools: Supports GIGABYTE Control Center, Q-Flash, Q-Flash Plus and Smart Backup, with voltage, temperature and fan monitoring.
- Source-listed physical format: ATX, measuring 30.5 × 24.4 cm. The supplied title, description heading and reference URL contain different model references, so confirm the exact board model and dimensions before purchase.
- Operating systems: Listed support for Windows 11 64-bit and Windows 10 64-bit.
Specifications
RAM256
CPU SocketLGA 1700
ChipsetB760
Form FactorATX
Memory Type (Generation)DDR5
Max Memory Speed (OC)7600
M.2 Slots (NVMe)3x
PCIe Version PCIe 5.0, PCIe 4.0, PCIe 3.0
Wireless NetworkingWi-Fi 6E, None, WiFi a/b/g/n/ac/ax
RGB LightingRGB, ARGB
Overclocking SupportYes
Bluetooth VersionBluetooth 5.3, No Bluetooth
ProcessorIntel Pentium Gold, Intel Celeron, 14th Generation Intel Core, 13th Generation Intel Core, 12th Generation Intel Core
Length30.5 cm
Width24.4 cm
