New
110.00JOD
- LGA 1700 socket supporting Intel 12th, 13th and 14th Gen processors.
- Four DDR5 slots supporting up to 256 GB and speeds up to 7600 MT/s (OC).
- PCIe 5.0 x16 expansion slot and two PCIe 4.0 M.2 storage sockets.
- Micro ATX design with 2.5GbE LAN, USB-C and Q-Flash Plus.
RAM:
In Stock
Available and ready to ship
Delivery
Covers all areas of the Kingdom
Order within 48m
Normal shipping
Get it tomorrow
Sunday18/10/2026
Only 3.00 JD
Fast shipping
Get it today
Only 5.00 JD
Do you have inquiries about this product?
WhatsApp UsDescription

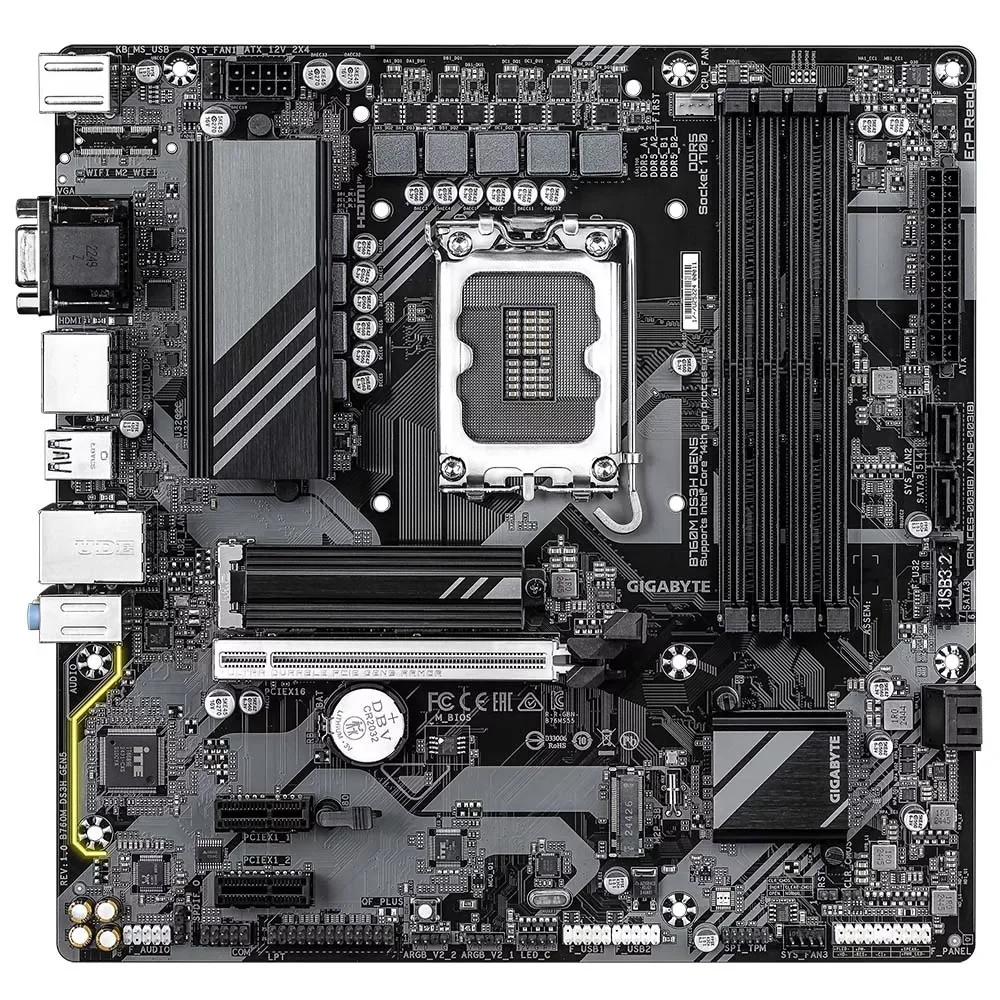

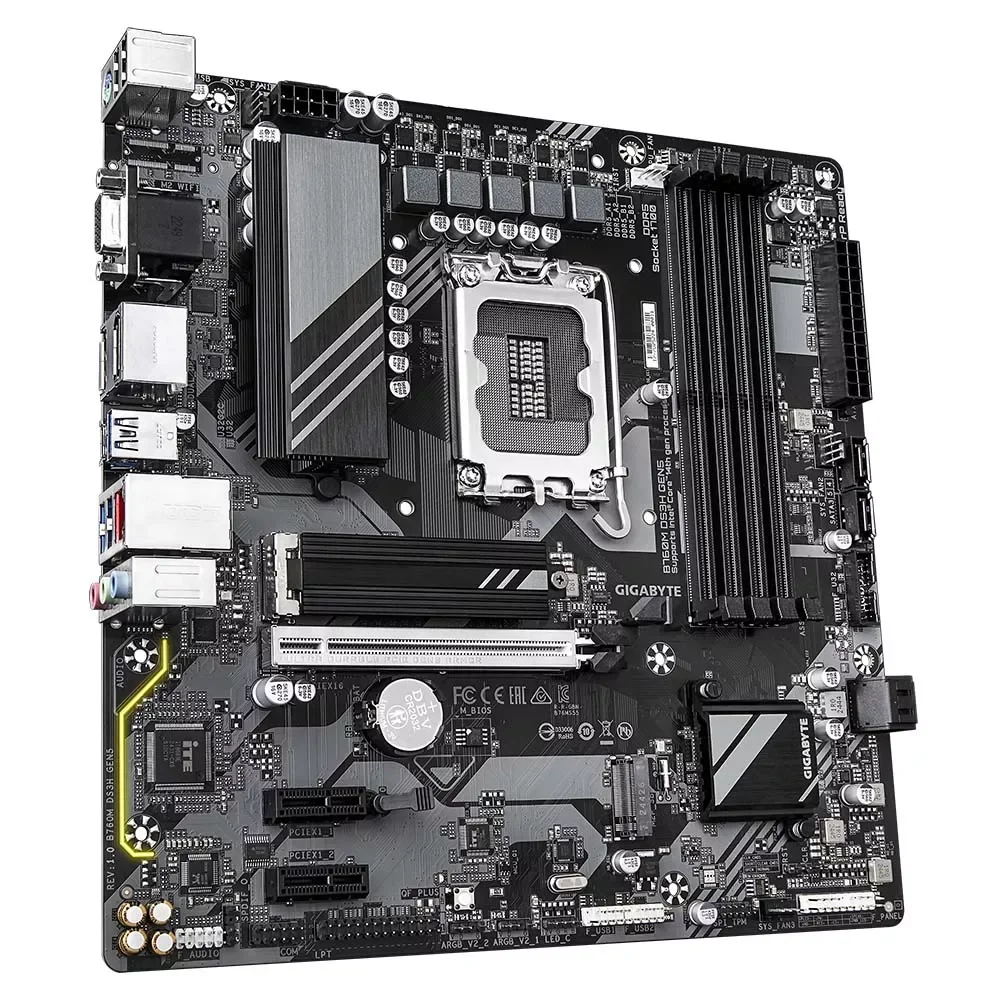

- Intel B760 platform: The GIGABYTE B760M DS3H GEN5 motherboard features an LGA 1700 socket supporting 12th, 13th and 14th Gen Intel Core processors, plus compatible Pentium Gold and Celeron processors. Check the manufacturer’s CPU support list before installation.
- DDR5 memory support: Four DIMM sockets support dual-channel memory with a maximum capacity of 256 GB, up to 64 GB per DIMM. Supported speeds include 7600, 7400, 7200, 7000, 6800, 6600, 6400, 6200, 6000 and 5800 MT/s with overclocking, plus 5600, 5200, 4800 and 4400 MT/s. Available speeds depend on the processor and memory configuration. XMP is supported.
- PCIe expansion: One CPU-connected PCIe 5.0 x16 slot supports a graphics card or NVMe SSD. Two chipset-connected PCIe 3.0 x1 slots provide additional expansion.
- Storage connectivity: Two M.2 Socket 3, M-key sockets support 2280 PCIe 4.0 x4/x2 SSDs. Four SATA 6Gb/s connectors support SATA RAID 0, 1, 5 and 10.
- Wired networking and Bluetooth: A Realtek 2.5GbE LAN controller supports 2.5 Gbps, 1 Gbps and 100 Mbps connections. The supplied specification also lists Bluetooth 4.2.

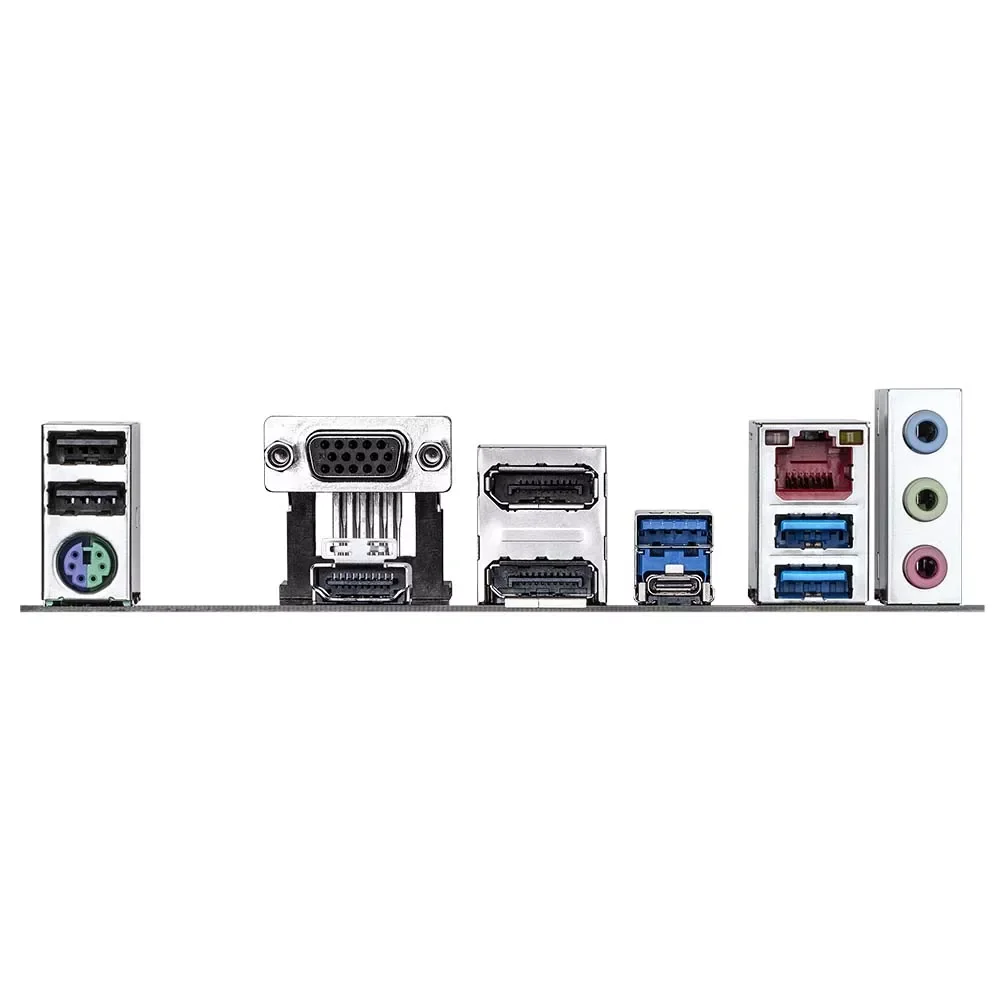

- USB connections: Rear connectivity includes one USB-C USB 3.2 Gen 2 port, three USB 3.2 Gen 1 ports and two USB 2.0 ports. Internal headers provide two additional USB 3.2 Gen 1 connections and four USB 2.0 connections.
- Display outputs: One D-Sub, one HDMI and two DisplayPort outputs support up to four simultaneous displays with a compatible processor. HDMI supports up to 4096 × 2160 at 60 Hz; DisplayPort supports up to 4096 × 2304 at 60 Hz. Display capabilities depend on the installed CPU.
- Audio: Realtek High Definition Audio supports configurable 2, 4, 5.1 and 7.1-channel output, plus an S/PDIF Out header.
- Cooling and lighting headers: One CPU fan header and three system fan headers support cooling management. Two ARGB Gen2 headers and one RGB header connect compatible lighting accessories.
- Build and firmware features: Ultra Durable construction and a hybrid VRM design are complemented by GIGABYTE Control Center, Q-Flash, Q-Flash Plus and Smart Backup. The board uses an AMI UEFI BIOS with 128 Mbit flash.
- Compact dimensions: Micro ATX form factor measuring 24.4 × 24.4 cm. Supports Windows 11 64-bit and Windows 10 64-bit.
Specifications
RAM256
CPU SocketLGA 1700
ChipsetB760
Form FactorMicro ATX
Memory Type (Generation)DDR5
Max Memory Speed (OC)5600, 6400, 7600, 7200, 4400, 6000, 5800, 5200, 4800, 6800, 7000, 6200, 7400, 6600
M.2 Slots (NVMe)2x
PCIe Version PCIe 5.0, PCIe 4.0, PCIe 3.0
RGB LightingRGB, ARGB
Overclocking SupportYes
Bluetooth VersionBluetooth 4.2
Length24.4 cm
Width24.4 cm
